Product Details:
|
| Brand Name: | Cinh Or Blank | Application: | Medical Instrument |
|---|---|---|---|
| Pressure: | 90kPA, -40kPA | Product Name: | Mini DC Air Pump |
| Voltage: | DC12V, DC24V | Flowrate: | 1.3- 1.5L/m |
| Max Pressure: | More Than 90 KPa | Endurance Time: | More Than 8000 Hours |
| Operating Noise: | Less Than 30dB | Operating Environmental Humidity: | 0-90%RH |
| High Light: | small electric air pump,miniature air pump |
||

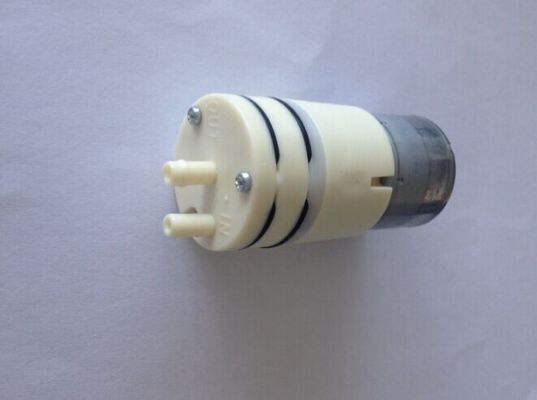

90%RH Medical Portable Mini DC Air Pump , High Pressure Air Pump Low Vibration
Medical Instrument Micro Inflate Air Pump , DC12v / 24V High Pressure Air Pump
Features
| > Compact size |
| > Steady air outputs with low noise |
| > Low power consumption |
| > Economical |
| > Very low vibration |
Specifications
|
Model: |
PBA12-1.5S |
|
Type: |
Brushless mini dc air pump |
|
Rated Voltage: |
DC12V, DC24V |
|
Flowrate: |
1.3- 1.5L/m |
|
Consumption current: |
320mA |
|
Vacuum achievement degree: |
More than -40kPa |
|
Max pressure: |
more than 90 kPa |
|
Coil insulation classfication: |
A type |
|
Endurance time: |
more than 8000 hours |
|
Operating noise: |
Less than 30dB |
|
Starting voltage: |
8V |
|
Weight: |
60g |
|
Operating Environmental Temperature: |
5-50.c |
|
Operating Environmental Humidity: |
0-90%RH |
Applications:
The versatility of TOPSFLO pumps allows a wide field of applications to be covered. Over many years our pumps
have proved themselves in the following areas:
Industrial pressure and vacuum applications
Portable Analytical Instruments
Medical Diagnostic Equipment
Air Quality Sampling Monitors
Respiration Monitors
Gas or Odor Leak Detectors
Competitive Advantage
long lifetime, low noise, high quality, 1.3-1.5L/M air flowrate and 90kpa pressure, with chemical resistance pump film, can carry chemical gas, RPM speed adjustable and controllable, energy saving suitable for battery driving, mini dc air pump
Our Services
We offer good products as well as good services.
1. OEM Service is availiable
2. High quality product with stick quality control
3. Reasonable price
4. Good before-sell and after-sell service, inquiry will be replyed within 24 hours
5. Also our engineer would like to offer solution if necessary
6. Warranty about 1 to 3 years depending on the product and how to use it
