Product Details:
|
| Application: | Aquarium | Feature: | Low Vibration|Low Power|low Pressure |
|---|---|---|---|
| Motor: | Brushless | Outlet / Inlet Dia: | 4mm |
| Product Name: | Brushless DC Water Pump | Voltage: | 12V|24V |
| High Light: | aquarium water pump,brushless dc water pump |
||

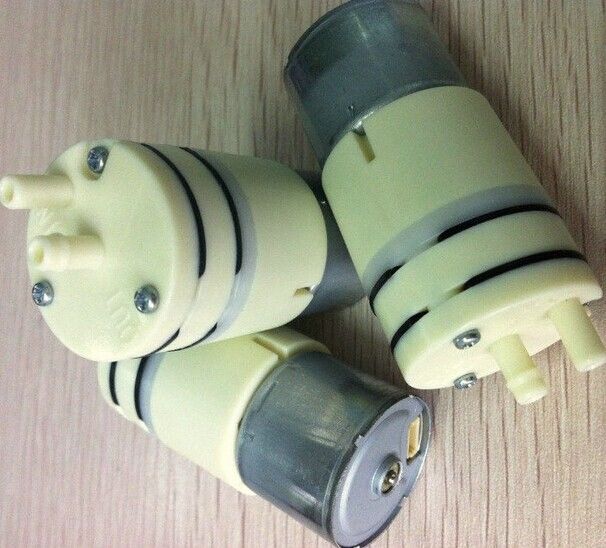

PBW12 Aquarium Micro Brushless DC Pump Low Pressure Super Long Lifetime OEM ODM
Quick Detail:
| Model: | PBW12 |
| Type : | Brushless DC Water Pump |
| Rated Voltage: | DC12V, DC24V |
| Flowrate: | 320+_50mL/m for water flowrate, 1.3L/m for air |
| Consumption current: | 250mA |
| Water suctionable height | 2m |
| Max pressure: | more than 90 kPa |
| Coil insulation classfication: | A type |
| Endurance time: | more than 8000 hours |
| Operating noise: | Less than 20dB |
| Starting voltage: | 8V |
| Weight: | 60g |
| Operating Environmental Temperature: | 5-50.c |
| Operating Environmental Humidity: | 0-90%RH |
Description:
CINH Brushless DC Water Pump PBW12 use a DC brushless motor design that has the capability of over 80000 hours of continuous maintenance-free operation. It is compact, very quiet, highly reliable and inexpensive, it has the design ability to work for chemical liquid or chemical gas continuously operating day and night.
Brushless DC Water Pump
1.Brushless motor, super long lifetime, super quiet
2. More than 320+_50mL/m for water flowrate, can work with water or wine or oil or ozonized water flowrate or Ammonia gas or liquid. Water suctionable height 2m.
3.Speed adjustable and controllable with square wave signal
4. Corrosive resistance advanced pump film, can carry chemical liquid.
5. lifetime more than 8000hours continuously working day and night
6. size is ∮27x59.7mm
7. Outlet & Inlet Dia: 4mm
8. weight: 60g
Features
> Compact size
> Steady air outputs with low noise
> Low power consumption
> Economical
> Very low vibration
Applications:
oil paint machine
syringe pump
ink machine
aquarium
Household appliance
Dosing chemical material
Battery driving pump
Wine pump
oil pump
ammonia pump
chemical liquid pump
chemical air/liquid pump
ozone pump
fragrance diffuser pump
vacuum pump for suck liquid or air
