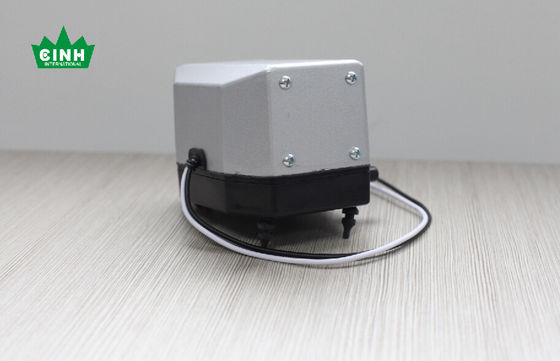

Powerful Micro Air Pump 30kpa High pressure , Electromagnetic Pump

China Powerful Micro Air Pump 30kpa High pressure , Electromagnetic Pump supplier
Powerful Micro Air Pump 30kpa High pressure , Electromagnetic Pump supplier Powerful Micro Air Pump 30kpa High pressure , Electromagnetic Pump supplier Powerful Micro Air Pump 30kpa High pressure , Electromagnetic Pump supplier

Large Image :  Powerful Micro Air Pump 30kpa High pressure , Electromagnetic Pump

Product Details:

Place of Origin: China
Brand Name: Cinh or Neutral
Certification: CE ROHS UL
Model Number: QBF-15

Payment & Shipping Terms:

Minimum Order Quantity: 30pcs
Price: Negotiable
Packaging Details: plastic film + white box + carton, one pc of QBF-15 air pump in one plastic film and white box, 30pcs white box in one carton,540pcs or 18cartons is 1cbm15120pcs or 504catons is one 20'GQ
Delivery Time: 3 to 35days
Payment Terms: T/T or L/C
Supply Ability: 5000pcs each day
Contact Now
Detailed Product Description
Material: Aluminum Material: Aluminum
Color: Slive Color: Slive
Certification: CE ROHS UL Place Of Origin: China
Weight: 0.62 Kg Size: 106x76x74 Mm
Certification: CE ROHS UL Place Of Origin: China
Weight: 0.62 Kg Size: 106x76x74 Mm





Powerful Micro Air Pump 30kpa High pressure , Electromagnetic Pump







Quick Detail:





CINH Mini AC micro vacuum pump QBF-15 series use a unique linear motion design that has the capability of over 20,000 hours of continuous maintenance-free operation. They are compact, cool and highly reliable and inexpensive.It is applied to blow up pillow and mattress, with 15L/m air flowrate and 30kpa pressure. It is one high performance of air pump, continuously operating, no over heat, no lifetime limit.






1. Brand Name:Cinh or Blank



2. Model Number:QBF-15



3. Theory:Electromagnetic Pump



4. Structure:Diaphragm Air Pump



5. Usage:Air Pump



6. Place of Origin:Zhejiang China (Mainland)



7. Application:pressing air



8. Power:Electric



9. Lifetime:More than 20,000 hours















Specifications:







ITEM SPECIFICATION
Air Output: 30SCFH(15Lpm)
Pump Pressure: 4.5PSI(30kpa)
Power Requirement: AC220V,AC120V, AC24V or AC12V, 50Hz or 60Hz
Power Consumption: 10W
Pump Design: Double diaphragm, duckbill valves
Pump Body: Aluminium
Outlet & Inlet Dia: 0.3"(7.6mm)
Electrical Connections: 1-ft(300mm)Insulated wire pair
Noise Level: 40db unconnected, connected operation will reduce db level
Dimension(LxWxH): 4.2"x3"x2.9"(106x76x74mm)
Net Weight: 0.62kgs





Applications:





cooling system

intermittend pneumatic compression(medical)

compression therapy

ozone generator

aquarium

recovery system

fragrance diffuser

air bed

Atmospheric Detection

Dosing chemical material

air cloth

medical applications

industrial applications

blood pressure





For example

1.cooling system: Cooling System eliminates the need for a separate supply of cooling water to high temperature process pump cooling circuit. The package circulates a cooling fluid (water/glycol mixture) in a closed loop to the pump’s seal cooling cavity.











Performance Curve





Powerful Micro Air Pump 30kpa High pressure , Electromagnetic Pump







  PRODUCT  SHOW





Powerful Micro Air Pump 30kpa High pressure , Electromagnetic Pump
