Atmospheric Detection Mini Air Pump High Flowrate / Diaphragm Air Pump

China Atmospheric Detection Mini Air Pump High Flowrate / Diaphragm Air Pump supplier
Atmospheric Detection Mini Air Pump High Flowrate / Diaphragm Air Pump supplier Atmospheric Detection Mini Air Pump High Flowrate / Diaphragm Air Pump supplier Atmospheric Detection Mini Air Pump High Flowrate / Diaphragm Air Pump supplier Atmospheric Detection Mini Air Pump High Flowrate / Diaphragm Air Pump supplier Atmospheric Detection Mini Air Pump High Flowrate / Diaphragm Air Pump supplier

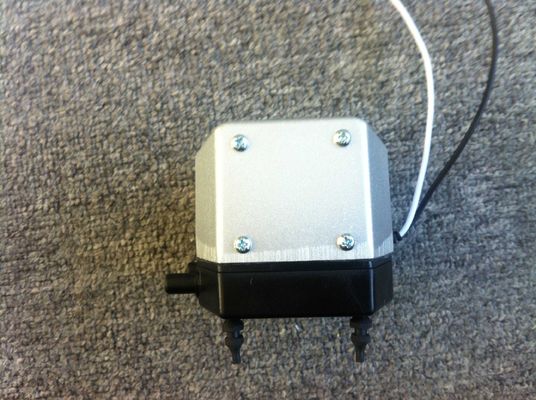

Large Image :  Atmospheric Detection Mini Air Pump High Flowrate / Diaphragm Air Pump

Product Details:

Place of Origin: China
Brand Name: Cinh or Neutral
Certification: CE ROHS UL
Model Number: QBF-15

Payment & Shipping Terms:

Minimum Order Quantity: 30pcs
Price: Negotiable
Packaging Details: plastic film + white box + carton, one pc of QBF-15 air pump in one plastic film and white box, 30pcs white box in one carton,540pcs or 18cartons is 1cbm15120pcs or 504catons is one 20'GQ
Delivery Time: 3 to 35days
Payment Terms: T/T or L/C
Supply Ability: 5000pcs each day
Contact Now
Detailed Product Description



Atmospheric Detection Mini Air Pump High Flowrate / Diaphragm Air Pump







This air pump is magnetic type working principle, it has two duckvalves, with one piston vibrates from left to right rapidly, to press the two valves to output air. It has obvious advantage is long lifetime, big air flowrate output, no overheat problem and stable and air flowrae; its shortcoming it big size, it can not make same small size as motor air pump.







Quick Detail:



Place of Origin: Zhejiang China (Mainland) Brand Name: Cinh or Blank Model Number: QBF-15
Theory: Electromagnetic Pump Structure: Diaphragm Air Pump Usage: Air Pump
Power: Electric Flowrate: 15L/m Fuel: Electric
Pressure: 30KPA Application: pressing air







Specifications:



ITEM SPECIFICATION
Air Output: 30SCFH(15Lpm)
Pump Pressure: 4.5PSI(30kpa)
Power Requirement: AC220V,AC120V, AC24V or AC12V, 50Hz or 60Hz
Power Consumption: 10W
Pump Design: Double diaphragm, duckbill valves
Pump Body: Aluminium
Outlet & Inlet Dia: 0.3"(7.6mm)
Electrical Connections: 1-ft(300mm)Insulated wire pair
Noise Level: 40db unconnected, connected operation will reduce db level
Dimension(LxWxH): 4.2"x3"x2.9"(106x76x74mm)
Net Weight: 0.62kgs





Applications:



intermittend pneumatic compression(medical)

compression therapy

ozone generator

aquarium

recovery system

fragrance diffuser

air bed

Atmospheric Detection

Dosing chemical material

air cloth

medical applications

industrial applications

balloon

medical

humidifier

blood pressure

gas monitor

dosing

cooling system

ink

water heater

boiler

boat

gas boiler

breast

fridge

pillow and mattress

beauty equipment



Performance Curve



Atmospheric Detection Mini Air Pump High Flowrate / Diaphragm Air Pump



Atmospheric Detection Mini Air Pump High Flowrate / Diaphragm Air Pump
