Home Aquarium Air Operated Pumps Low Pressure Air Pump ROHS

China Home Aquarium Air Operated Pumps Low Pressure Air Pump ROHS supplier
Home Aquarium Air Operated Pumps Low Pressure Air Pump ROHS supplier Home Aquarium Air Operated Pumps Low Pressure Air Pump ROHS supplier

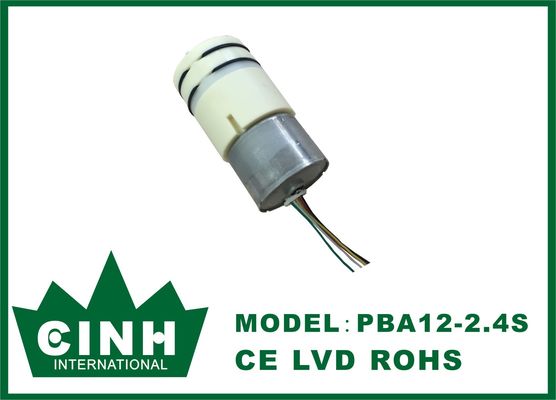

Large Image :  Home Aquarium Air Operated Pumps Low Pressure Air Pump ROHS

Product Details:

Place of Origin: China
Brand Name: no brand or Cinh
Certification: ROHS
Model Number: PBA12-2.4S

Payment & Shipping Terms:

Minimum Order Quantity: 210pcs
Price: Negotiable
Packaging Details: Carton+ white box+ plastic film
Delivery Time: 3 to 35days
Payment Terms: T/T or L/C
Supply Ability: 5000pcs each day
Contact Now
Detailed Product Description
Model: PBA12-2.4S Type: Brushless DC Micro Air Pump
Rated Voltage: DC12V, DC24V Flowrate: 2-2.4L/m
Consumption Current: 240mA Vacuum Achievement Degree: ----------
Max Pressure: More Than 100 KPa



 240mA Miniature DC 12Volt / 24Volt Air Pumps For home aquarium



Brushless mini dc air pump


1. Brushless motor, super long lifetime, super quiet

2. More than 100kPa pressure, and 2-2.4L/m air flowrate

3. Speed adjustable and controllable with square wave signal

4. Corrosive resistance advanced pump film, can carry chemical gas

5. lifetime more than 8000hours continuously working day and night

6. size is ∮27x59.7mm

7. Outlet & Inlet Dia: 4mm

8. weight: 60g




CINH Mini Brushless DC micro air pump PBA12-2.4S use a DC brushless motor design that has the capability of over 80000 hours of continuous maintenance-free operation. It is compact, very quiet, highly reliable and inexpensive.







Brushless mini dc air pump

Rated Voltage:

DC12V, DC24V



Consumption current:


Vacuum achievement degree


Max pressure:

more than 100 kPa

Coil insulation classfication:

A type

Endurance time:

more than 8000 hours

Operating noise:

Less than 30dB

Starting voltage:




Operating Environmental Temperature:


Operating Environmental Humidity:




Electric pumps electronic blood pressure monitor
The monitor The head massager
A tourniquet Massage goggles
Alcohol detector The coffee machine
Breathing machine Analyzer
Ozone machine Gas analyzer
Beautiful leg massager Treadmill medical apparatus and instruments, etc.





Q: What's your payment terms?
A: Usually we accept T/T ,Western Union or PayPal.

Q: What's your delivery time?
A. 1.The stock samples can be sent to you within 3-5days by international express after received
   2.The batch order can be shipped to you in about 30-40days after order confirmation (by air or by sea)

Q: What's your main products of your company?
A: We specialized in all kinds of micro pumps(micro BLDC centrifugal water pump,micro gear pump,high performance diaphragm air/liquid pump )for over 10 years with excellent quality and competitive.

Q:How can I choose the most suitable pump?
A: Please tell me your detailed flow rate, voltage, application and so on, then I will match the most appropriate pump for you, or you can choose the exact model in the product manual.

Q: How long is your pump lifetime?
A: Pump lifetime mainly depends on motor lifetime,we have DC brush, brushless, coreless brushless motor For your choice


For more detail, please feel free contact us !
