AC220V / 110V / 24V / 12V 50Hz / 60Hz Micro Air Pump With Low Power Consumption

AC220V / 110V / 24V / 12V 50Hz / 60Hz Micro Air Pump With Low Power Consumption
AC220V / 110V / 24V / 12V 50Hz / 60Hz Micro Air Pump With Low Power Consumption
AC220V / 110V / 24V / 12V 50Hz / 60Hz Micro Air Pump With Low Power Consumption AC220V / 110V / 24V / 12V 50Hz / 60Hz Micro Air Pump With Low Power Consumption AC220V / 110V / 24V / 12V 50Hz / 60Hz Micro Air Pump With Low Power Consumption AC220V / 110V / 24V / 12V 50Hz / 60Hz Micro Air Pump With Low Power Consumption

Large Image :  AC220V / 110V / 24V / 12V 50Hz / 60Hz Micro Air Pump With Low Power Consumption

Product Details:
Place of Origin: Zhejiang
Brand Name: Cinhpump
Certification: CE LVD ROHS

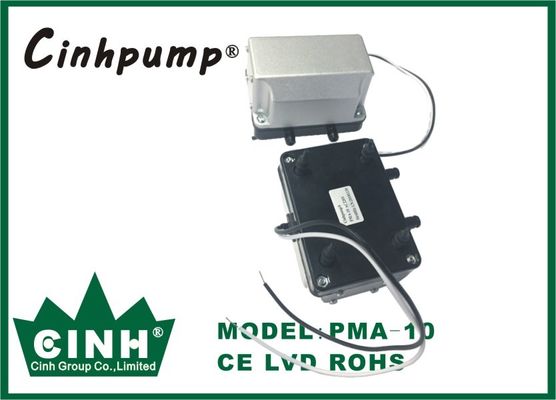

Model Number: PMA-10
Payment & Shipping Terms:
Minimum Order Quantity: 40pcs
Packaging Details: plastic film + white box + carton, one pc of PMA-10 air pump in one plastic film and white box, 40pcs white box in one carton
Delivery Time: 3~35 days
Payment Terms: Negotiable
Supply Ability: 5000pcs each day

AC220V / 110V / 24V / 12V 50Hz / 60Hz Micro Air Pump With Low Power Consumption

Description
Operating Temperature: -20~40.C Lifetime: >=20000hours
Corrosion Resistance: Strong Color: Grey And Black
Place Of Origin: China Brand Name: Cinhpump
High Light:

12v micro pump

,

micro pressure pump

,

25Kpa micro air pump



AC220V / 110V / 24V / 12V 50Hz / 60Hz Micro Air Pump With Low Power Consumption



Brief introduction


Cinhpump PMA-10 series high quality micro air diaphragm pump is not only capable of exhausting the air flow, but also can convey some uneasy flowed medium, with the merits of self-priming pump, diving pump, shield pump, slurry pump and impurity pump etc.



Specifications:



Air putout: 20SCFH(10lpm)

Pump Pressure: 3.63PSI(25Kpa)

Power Requirement: AC220V/110V/24V/12V.50Hz/60Hz

PowerConsumption: 8W

Pump Desig: Double diaphragm,duckbill valves

Pump Body: Aluminium

Outlet&Inlet Dia: 0.28"(7.2mm)

Electricall Connections: 1-ft(300mm)Insulated wire pair

Noise Level: 35db unconnected,connected operation Will reduce db level.

Dimension(LxWxH): 3.78"x2.68"x2.52"(96x68x64mm)

Weight: 0.54kgs
