Product Details:
|
| Application: | Aquarium|medical|Dosing|industrial | Feature: | Low Vibration|Low Power|low Noise |
|---|---|---|---|
| Material: | Aluminum | Product Name: | Double Diaphragm Pump |
| Pump Design: | Double Diaphragm|duckbill Valves | Voltage: | 12V |
| High Light: | mini air compressor,double diaphragm air pump,18kPA dual diaphragm air pump |
||

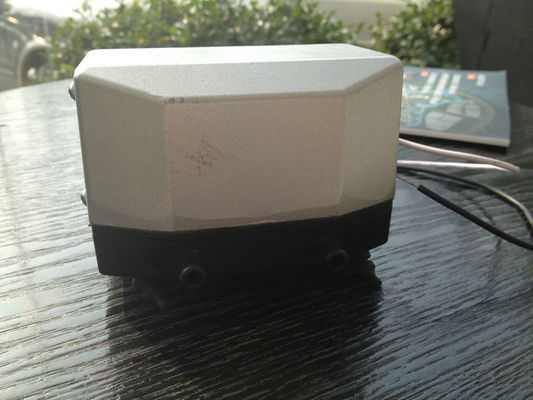

QBF-8 12V AC Low Noise Dual Diaphragm Air Pump For Atmospheric Detection
Quick Detail:
| Place of Origin: | Zhejiang China (Mainland) | Brand Name: | Cinh or Blank | Model Number: | QBF-8 |
| Theory: | Electromagnetic Pump | Structure: | Diaphragm Pump | Usage: | Air Pump |
| Power: | Electric | Flowrate: | 8L/m | Fuel: | Electric |
| Pressure: | 18kPA | Application: | pressing or sucking gas |
Description:
CINH AC Dual Diaphragm Air Pump QBF-8 Series use a unique linear motion design that has the capability of over 20,000 hours of continuous maintenance-free operation. They are compact, cool and highly reliable and inexpensive.
Features:
Applications:
intermittend pneumatic compression(medical)
compression therapy
ozone generator
aquarium
recovery system
fragrance diffuser
air bed
Atmospheric Detection
Dosing chemical material
air cloth
medical applications
industrial applications
Specifications:
Air Output: 18SCFH(8Lpm)
Pump Pressure: 2.7PSI(18kpa)
Power Requirement: AC220V,AC120V, AC24V or AC12V, 50Hz or 60Hz
Power Consumption: 7W
Pump Design: Double diaphragm, duckbill valves
Pump Body: Aluminium
Outlet & Inlet Dia: 0.3"(7.6mm)
Electrical Connections: 1-ft(300mm)Insulated wire pair
Noise Level: 40db unconnected, connected operation will reduce db level
Dimension(LxWxH): 119x87x69 mm
Net Weight: 0.60kgs
Performance Curve
Competitive Advantage:
long lifetime, low noise, high quality, 8L/M air flowrate and 18kpa pressure, AC Dual Diaphragm Air Pump
