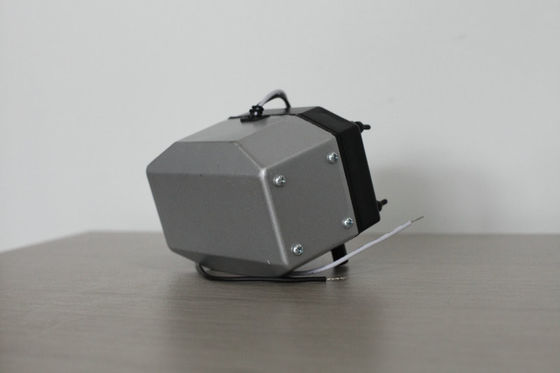

Double Diaphragm AC Micro Vacuum Pump For Aquarium 12v / 24V/ 110v/ 220v

Double Diaphragm AC Micro Vacuum Pump For Aquarium 12v / 24V/ 110v/ 220v
Double Diaphragm AC Micro Vacuum Pump For Aquarium 12v / 24V/ 110v/ 220v Double Diaphragm AC Micro Vacuum Pump For Aquarium 12v / 24V/ 110v/ 220v Double Diaphragm AC Micro Vacuum Pump For Aquarium 12v / 24V/ 110v/ 220v Double Diaphragm AC Micro Vacuum Pump For Aquarium 12v / 24V/ 110v/ 220v Double Diaphragm AC Micro Vacuum Pump For Aquarium 12v / 24V/ 110v/ 220v

Large Image :  Double Diaphragm AC Micro Vacuum Pump For Aquarium 12v / 24V/ 110v/ 220v

Product Details:
Place of Origin: China
Brand Name: no brand or Cinh
Certification: CE ROHS UL
Model Number: QBF-15
Payment & Shipping Terms:
Minimum Order Quantity: 30pcs
Price: Negotiable
Packaging Details: Carton+ white box+ plastic film
Delivery Time: 3 to 35days
Payment Terms: T/T or L/C
Supply Ability: 5000pcs each day

Double Diaphragm AC Micro Vacuum Pump For Aquarium 12v / 24V/ 110v/ 220v

Description
Application: Aquarium|Dosing|industrial|medical Feature: Low Power|low Noise|low Vibration|long Life Time
Material: Aluminum Product Name: Micro Vacuum Pump
Pump Design: Double Diaphragm|duckbill Valves Voltage: 12V
High Light:

diaphragm vacuum pump

,

mini vacuum pump



QBF-15 Double Diaphragm AC Micro Vacuum Pump For Aquarium 12v / 24V / 110v / 220v Long Life Time





Quick Detail:



15L/m air flowrate

30kpa air pressure

Double diaphragm, duckbill valves

Aluminum body

Continuous working day and night

lifetime more than 20,000hours

size:106x76x74 mm

weight:0.62 kg

Outlet & Inlet Dia: 0.3" (7.6 mm)





Description:



CINH Mini AC micro vacuum pump QBF-15 series use a unique linear motion design that has the capability of over 20,000 hours of continuous maintenance-free operation. They are compact, cool and highly reliable and inexpensive.





Features:



  • Compact size
  • Steady air outputs with low noise
  • Very low vibration
  • Low power consumption
  • Economical





Applications:



intermittend pneumatic compression(medical)

compression therapy

ozone generator

aquarium

recovery system

fragrance diffuser

air bed

Atmospheric Detection

Dosing chemical material

air cloth

medical applications

industrial applications





Specifications:



Air Output: 30SCFH(15Lpm)

Pump Pressure: 4.5PSI(30kpa)

Power Requirement: AC220V,AC120V, AC24V or AC12V, 50Hz or 60Hz

Power Consumption: 10W

Pump Design: Double diaphragm, duckbill valves

Pump Body: Aluminium

Outlet & Inlet Dia: 0.3"(7.6mm)

Electrical Connections: 1-ft(300mm)Insulated wire pair

Noise Level: 40db unconnected, connected operation will reduce db level

Dimension(LxWxH): 4.2"x3"x2.9"(106x76x74mm)

Net Weight: 0.62kgs





Performance Curve



Double Diaphragm AC Micro Vacuum Pump For Aquarium 12v / 24V/ 110v/ 220v 0



Double Diaphragm AC Micro Vacuum Pump For Aquarium 12v / 24V/ 110v/ 220v 1





Competitive Advantage:



long lifetime, low noise, high quality, 15L/M air flowrate and 30kpa pressure, AC micro vacuum pump
