Product Details:
|
High Light: | 12v micro pump,micro electric air pump |
---|

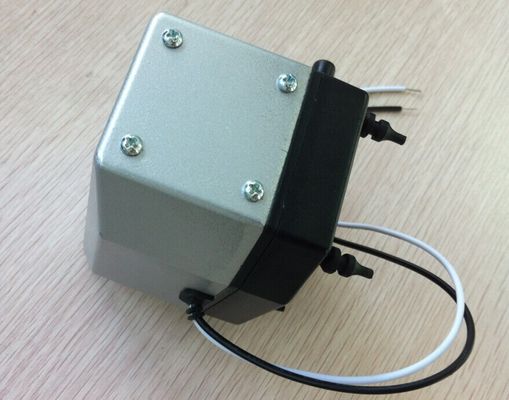

Vacuum Micro Air Pump 30kPA 15L/m AC 110V For Fragrance Diffuser
Quick Detail:
Place of Origin: | Zhejiang China (Mainland) | Brand Name: | Cinh or Blank | Model Number: | QBF-15 |
Theory: | Electromagnetic Pump | Structure: | Diaphragm Pump | Usage: | Air Pump |
Power: | Electric | Flowrate: | 15L/m | Fuel: | Electric |
Pressure: | 30KPA | Application: | suction or pressing air |
Specifications:
ITEM | SPECIFICATION |
Air Output: | 30SCFH(15Lpm) |
Pump Pressure: | 4.5PSI(30kpa) |
Power Requirement: | AC220V,AC120V, AC24V or AC12V, 50Hz or 60Hz |
Power Consumption: | 10W |
Pump Design: | Double diaphragm, duckbill valves |
Pump Body: | Aluminium |
Outlet & Inlet Dia: | 0.3"(7.6mm) |
Electrical Connections: | 1-ft(300mm)Insulated wire pair |
Noise Level: | 40db unconnected, connected operation will reduce db level |
Dimension(LxWxH): | 4.2"x3"x2.9"(106x76x74mm) |
Net Weight: | 0.62kgs |
Applications:
intermittend pneumatic compression(medical)
compression therapy
ozone generator
aquarium
recovery system
fragrance diffuser
air bed
Atmospheric Detection
Dosing chemical material
air cloth
medical applications
industrial applications
Performance Curve
Micro Air Pump
