Product Details:
|
| Material: | Aluminum | Voltage: | 24V |
|---|---|---|---|
| Application: | Sphygmomanometer | Color: | Slive |
| Pressure: | 30KPA | Flowrate: | 15L/M |
| High Light: | 12v micro pump,micro electric air pump |
||

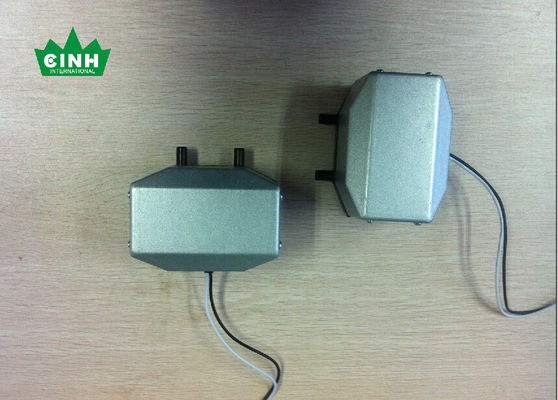

Gas high pressure Mini Air Pump / Diaphragm Air Pump pressing air
The mini air pump is widely applied for sphygmomanometer, 15L/m air flowrate and 30kpa pressure, can make into different AC voltage type, such as AC220V 110V 24V 12V and so on. You can tell us your requirements and your application, we will make suitable air pump for you.
Quick Detail:
| Place of Origin: | Zhejiang China (Mainland) | Brand Name: | Cinh or Blank | Model Number: | QBF-15 |
| Theory: | Electromagnetic Pump | Structure: | Diaphragm Air Pump | Usage: | Air Pump |
| Power: | Electric | Flowrate: | 15L/m | Fuel: | Electric |
| Pressure: | 30KPA | Application: | pressing air |
Continuous working day and night
lifetime more than 20,000hours
Specifications:
Air Output: 30SCFH(15Lpm) Pump Pressure: 4.5PSI(30kpa)
Power Consumption: 10W Pump Design: Double diaphragm, duckbill valves
Pump Body: Aluminium Outlet & Inlet Dia: 0.3"(7.6mm)
Dimension(LxWxH): 4.2"x3"x2.9"(106x76x74mm) Net Weight: 0.62kgs
Electrical Connections: 1-ft(300mm)Insulated wire pair
Noise Level: 40db unconnected, connected operation will reduce db level
Power Requirement: AC220V,AC120V, AC24V or AC12V, 50Hz or 60Hz
Applications:
intermittend pneumatic compression(medical)
compression therapy
ozone generator
aquarium
recovery system
fragrance diffuser
air bed
Atmospheric Detection
Dosing chemical material
medical applications
industrial applications
blood pressure
gas monitor
dosing
cooling system
ink
water heater
Features:
· Compact size
· Steady air outputs with low noise
· Very low vibration
· Low power consumption
· Economical
Performance Curve
Competitive Advantage:
low noise, high quality, 15L/M air flowrate and 30kpa pressure, AC micro vacuum pump
Continuous working day and night
lifetime more than 20,000hours
