Product Details:
|
| Material: | Aluminum | Color: | Slive |
|---|---|---|---|
| Power: | 10W | Flowrate: | 15L/M |
| Weight:: | 0.62kgs | Air Output: | 30SCFH(15Lpm) |
| Highlight: | mini air compressor,air diaphragm pumps,15L/M electric double diaphragm pump |
||

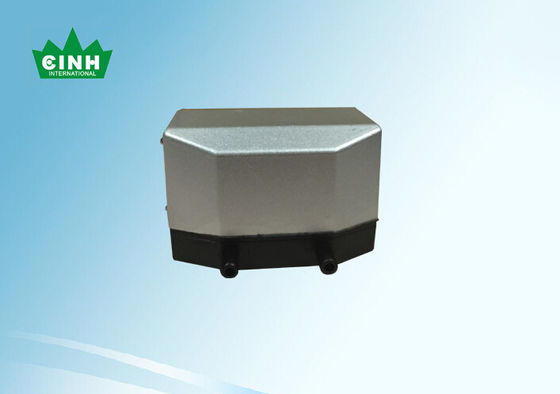

Aluminum Mini Dual Diaphragm Air Pump 15L/M Air Flowrate For Beauty Equipment
It is silent based on 15L/m and 30kpa ability. Many clients are applying it to beauty equipments.
CINH Mini AC micro vacuum pump QBF-15 series use a unique linear motion design that has the capability of over 20,000 hours of continuous maintenance-free operation. They are compact, cool and highly reliable and inexpensive.
Specifications:
| ITEM | SPECIFICATION |
| Air Output: | 30SCFH(15Lpm) |
| Pump Pressure: | 4.5PSI(30kpa) |
| Power Requirement: | AC220V,AC120V, AC24V or AC12V, 50Hz or 60Hz |
| Power Consumption: | 10W |
| Pump Design: | Double diaphragm, duckbill valves |
| Pump Body: | Aluminium |
| Outlet & Inlet Dia: | 0.3"(7.6mm) |
| Electrical Connections: | 1-ft(300mm)Insulated wire pair |
| Noise Level: | 40db unconnected, connected operation will reduce db level |
| Dimension(LxWxH): | 4.2"x3"x2.9"(106x76x74mm) |
| Net Weight: | 0.62kgs |
Applications:
medical applications
industrial applications
balloon
medical
humidifier
blood pressure
gas monitor
dosing
water heater
boiler
boat
gas boiler
breast
fridge
pillow and mattress
beauty equipment
Features:
· Compact size
· Steady air outputs with low noise
· Very low vibration
· Low power consumption
· Economical
