Product Details:
|
| Material: | Aluminum | Color: | Slive |
|---|---|---|---|
| Voltage: | AC12V,AC24V, | Flowrate: | 15L/M |
| Name: | Electric Operated Double Diaphragm Pump | Air Output: | 30SCFH(15Lpm) |
| High Light: | mini air compressor,air diaphragm pumps,electromagnetic double diaphragm air pump |
||

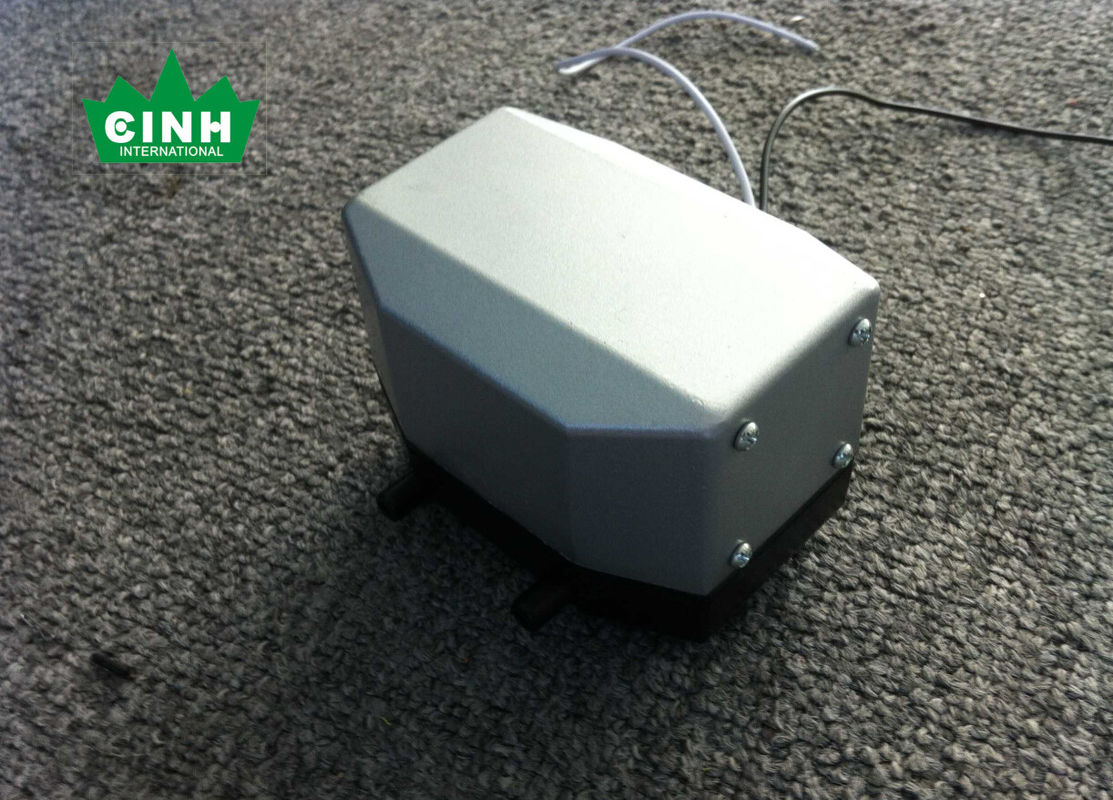

Electromagnetic Dual Diaphragm Air Pump Small For Recovery System
Description:
This Dual Diaphragm Air Pump is widely use for recovery system, it has 30kpa and 15L/m air flowrate, it has AC12V or AC24V model or AC110V or AC220V model, high cost double coils structure, double duckvalve, very long lifetime more than 20,000hours, 2mm thickness aluminum box to prevent electromagnetic escaping.
Quick Detail:
CINH Dual Diaphragm Air Pump use a unique linear motion design that has the capability of over 20,000 hours of continuous maintenance-free operation.
| Place of Origin: | Zhejiang China (Mainland) | Brand Name: | Cinh or Blank | Model Number: | QBF-15 |
| Theory: | Electromagnetic Pump | Structure: | Diaphragm Air Pump | Usage: | Air Pump |
| Power: | Electric | pplicatiAon: | pressing air | Fuel: | Electric |
| Weight: | 0.62kgs | Size: | 106x76x74mm | ||
| Pressure | 30KPA | Flowrate | 15L/M |
Specifications:
| ITEM | SPECIFICATION |
| Air Output: | 30SCFH(15Lpm) |
| Pump Pressure: | 4.5PSI(30kpa) |
| Power Requirement: | AC220V,AC120V, AC24V or AC12V, 50Hz or 60Hz |
| Power Consumption: | 10W |
| Pump Design: | Double diaphragm, duckbill valves |
| Pump Body: | Aluminium |
| Dimension(LxWxH) | 4.2"x3"x2.9"(106x76x74mm) |
| Electrical Connections | 1-ft(300mm)Insulated wire pair |
| Outlet & Inlet Dia: | 0.3"(7.6mm) |
| Electrical Connections: | 1-ft(300mm)Insulated wire pair |
| Noise Level: | 40db unconnected, connected operation will reduce db level |
Applications:
The Dual Diaphragm Air Pump is apply for every fields,in addition of recovery system,also is used other fields .as follows:
. compression therapy
. ozone generator
. aquarium
. recovery system
. fragrance diffuser
. air bed
. Atmospheric Detection
. Dosing chemical material
. air cloth
. medical applications
. industrial applications
CERTIFICATION (CE ROHS UL)
