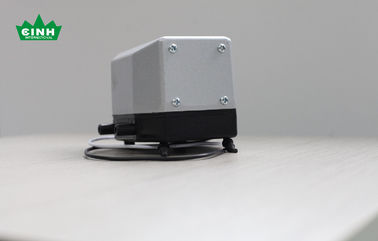

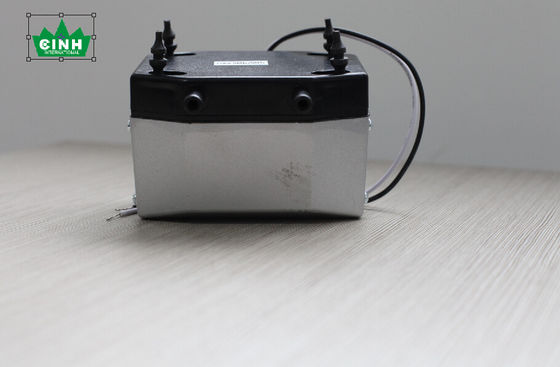

AC36 Silent Dual Diaphragm Air Pump For Aquarium 106 x 76 x 74mm

AC36 Silent Dual Diaphragm Air Pump For Aquarium 106 x 76 x 74mm
AC36 Silent Dual Diaphragm Air Pump For Aquarium 106 x 76 x 74mm AC36 Silent Dual Diaphragm Air Pump For Aquarium 106 x 76 x 74mm AC36 Silent Dual Diaphragm Air Pump For Aquarium 106 x 76 x 74mm

Large Image :  AC36 Silent Dual Diaphragm Air Pump For Aquarium 106 x 76 x 74mm

Product Details:
Place of Origin: China
Brand Name: Cinh or Neutral
Certification: CE ROHS UL

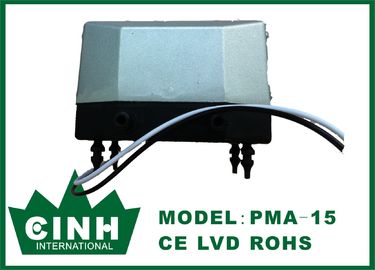

Model Number: PMA-15
Payment & Shipping Terms:
Minimum Order Quantity: 30pcs
Price: Negotiable
Packaging Details: plastic film + white box + carton, one pc of PMA-15 air pump in one plastic film and white box, 30pcs white box in one carton,540pcs or 18cartons is 1cbm15120pcs or 504catons is one 20'GQ
Delivery Time: 3 to 35days
Payment Terms: T/T or L/C,
Supply Ability: 5000pcs each day

AC36 Silent Dual Diaphragm Air Pump For Aquarium 106 x 76 x 74mm

Description
Power: Electric Color: Slive
Pressure: 30KPA Flowrate: 15L/M
Weight:: 0.62kgs Theory: Electromagnetic Pump
High Light:

mini air compressor

,

double diaphragm air pump

,

double duckvalve micro air pumps

AC36 Silent Air Diaphragm Pumps For Aquarium 106 x 76 x 74mm









This diaphragm micro air pumps  are widely applied for aquarium, it has AC 36V to AC 240V, it has double coils structure, double duckvalve structure inside, high cost and high quality, also have Anti - vibration function.









Specifications:



ITEM SPECIFICATION
Air Output: 30SCFH(15Lpm)
Pump Pressure: 4.5PSI(30kpa)
Power Requirement: AC220V,AC120V, AC24V or AC12V, 50Hz or 60Hz
Power Consumption: 10W
Pump Design: Double diaphragm, duckbill valves
Pump Body: Aluminium
Outlet & Inlet Dia: 0.3"(7.6mm)
Electrical Connections: 1-ft(300mm)Insulated wire pair
Noise Level: 40db unconnected, connected operation will reduce db level
Dimension(LxWxH): 4.2"x3"x2.9"(106x76x74mm)
Net Weight: 0.62kgs









Quick Detail:





    Air Flowrate: 15L/m                                                          Air Pressure:  30kpa



    Place of Origin:Zhejiang China (Mainland)                       Theory:Electromagnetic Pump



    Brand Name:Cinh or Blank                                               Structure:Diaphragm Air Pump



    Usage:Air Pump                                                                Application:pressing air



    Power:Electric                                                                   Outlet & Inlet Dia: 0.3" (7.6 mm)









Performance Curve



AC36 Silent Dual Diaphragm Air Pump For Aquarium 106 x 76 x 74mm 0



AC36 Silent Dual Diaphragm Air Pump For Aquarium 106 x 76 x 74mm 1







Features:



 .  Brushless motor manufacture

 .  Small size

 .  Low noise

 .  Easy to operate,

 .  Easy to carry

 .  24 hours of continuousoperation











Applications:



Aquarium



AC36 Silent Dual Diaphragm Air Pump For Aquarium 106 x 76 x 74mm 2
