Product Details:
|
Power: | Electric | Name: | Diaphragm Vacuum Pump |
---|---|---|---|
Pressure: | 30KPA | Flowrate: | 15L/M |
Weight:: | 0.62kgs | Application: | Ozone Generator |
Highlight: | diaphragm vacuum pump,brushless vacuum pump |

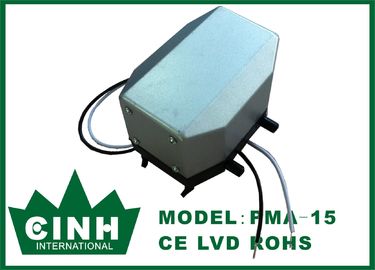

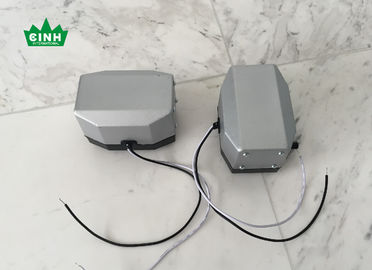

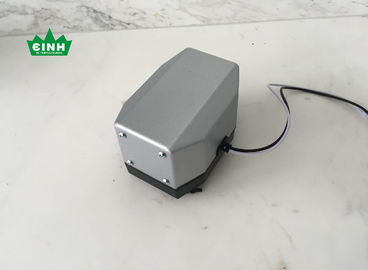

Magnetic Micro Vacuum Pumps , AC 12V Air Pump For Ozone Generator
The Micro Vacuum Pump are widely applied for Ozone Generator, it has AC 12V to AC 240V, it has double coils structure, double duckvalve structure inside.In addition, It also have lots of advantage ,such as high cost and high quality, Anti - vibration function.
Specifications:
ITEM | SPECIFICATION |
Air Output: | 30SCFH(15Lpm) |
Pump Pressure: | 4.5PSI(30kpa) |
Power Requirement: | AC220V,AC120V, AC24V or AC12V, 50Hz or 60Hz |
Power Consumption: | 10W |
Pump Design: | Double diaphragm, duckbill valves |
Pump Body: | Aluminium |
Outlet & Inlet Dia: | 0.3"(7.6mm) |
Electrical Connections: | 1-ft(300mm)Insulated wire pair |
Noise Level: | 40db unconnected, connected operation will reduce db level |
Dimension(LxWxH): | 4.2"x3"x2.9"(106x76x74mm) |
Net Weight: | 0.62kgs |
Quick Detail:
Air Flowrate: 15L/m Air Pressure: 30kpa
Place of Origin:Zhejiang China (Mainland) Theory:Electromagnetic Pump
Brand Name:Cinh or Blank Structure:Diaphragm Air Pump
Usage:Air Pump Application:pressing air
Power:Electric Outlet & Inlet Dia: 0.3" (7.6 mm)
Performance Curve
Features:
. Small size
. Low noise
. Easy to operate,
. Easy to carry
. 24 hours of continuousoperation
Applications:
Ozone Generator
Operating Principle:Apply Air pump to press Ozone out
